Home > Solenoid > Swing Solenoid

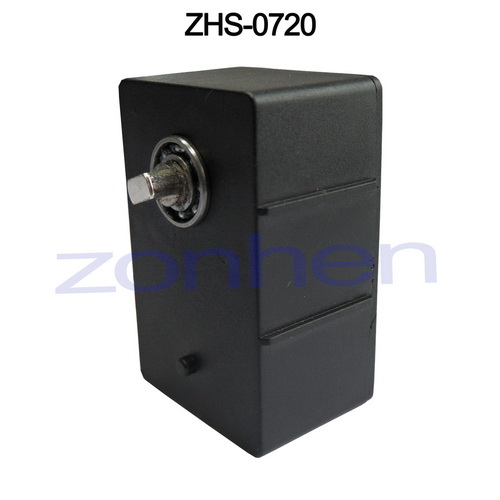

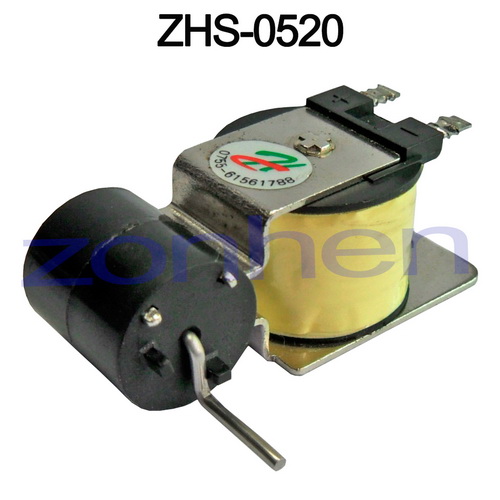

Swing Solenoid

  • The oblique tracks are specially processed. We may therefore get certain torque at every angle.
  • The diameter ranges from 30 to 87 mm,10 sizes, angle ranges from 25 to 95 degree.
  • New Model ZHS-0407 & ZHS-0504, small size, high sensitivity, mainly applied in switching of camera lens(Camera, Camera-control monitor, vidicon etc.).
Please contact us for details

Tel: 0086-755-61561788
0086-13129556582
Fax: 0086-755-61561799

Email:sales@zonhen.com

MSN:douminger@hotmail.com

ID:douminger@hotmail.com

Skype ID:doumingerID:douminger
??? ID:zonhenID:zonhen
QQ:292089951ID:292089951

Product of Swing Solenoid

IR- CUT Infrared filter switcher:
Size
LXWXH

Picutre(Click to enlarge)

Voltage Response time Application Download
ZHS-0503
28 x28 x 11

IR-CUT

5.5V ~13VDC

80ms

CCD ,CMOS chip IR-CUT
ZHS-0505-A
28 x28 x 13

IR-CUT

4.5V ~14VDC

80ms

CCD ,CMOS chip IR-CUT
ZHS-0505-B
28 x28 x 14

IR-CUT

4.5V ~14VDC

80ms

CCD ,CMOS chip IR-CUT
ZHS-0505-C
28 x28 x 14

IR-CUT

4.5V ~14VDC

80ms

CCD ,CMOS chip IR-CUT
ZHS-0505-D
34 x34 x 13

IR-CUT

4.5V ~14VDC

80ms

CCD ,CMOS chip IR-CUT
ZHS-0505-E
34 x34 x 12

IR-CUT

4.5V ~14VDC

80ms

CCD ,CMOS chip IR-CUT
ZHS-0602-A
26 x20 x 12.6

IR-CUT

2.0V ~15VDC

80ms

CCD ,CMOS chip IR-CUT
ZHS-0604
32 x32 x 14

IR-CUT

4.0V ~14VDC

80ms

CCD ,CMOS chip IR-CUT
ZHS-0605
32 x28 x 13.4

IR-CUT

2.0V ~15VDC

80ms

CCD ,CMOS chip IR-CUT

ZHS Series Swing Solenoid:
Size
diameter x length

Picture(Click to enlarge )

Duty Cycle Rotation Angle
Starting Torque NDm
Power
Watts
Max. ON
time
in seconds
Download
25X 35X 45X 67.5X 95X
ZHS-04
21 x 51

Swing solenoid ZHS-4

100% 0.014 0.029 0.017 0.012 @

9


25% 0.15 0.115 0.092 0.046 @ 36 36
ZHS-05
40 x 25

Swing Solenoid ZHS-5

100% 0.104 0.069 0.035 0.022 0.012 12.5
25% 0.355 0.23 0.16 0.092 0.058 50 36
ZHS-0204
11 x6.4x 6.1

IR-CUT

Voltage2.7VDC,Torque 0.02Nm IR-CUT
ZHS-0407
10.4 x9.5 x7.9

IR-CUT

Voltage 3.3VDC, Torque 0.05Nm IR-CUT
ZHS-0504
14.4 x6 x4.4

IR-CUT

Voltage9.0VDC, Torque 0.024Nm IR-CUT
ZHS-0508
18 x9.5 x10

IR-CUT

Voltage2.5VDC, Torque 0.2Nm IR-CUT
